LK-D-SS-12-T andiany fahatarana Optical & Simulator Optical
- Bandwidth hatramin'ny 12GHz
- Avo mavitrika
- Fampiharana mari-pana midadasika
- Valiny amplitude ambany
- Fahatarana ara-potoana namboarina
Mombamomba ny vokatra
Miankina amin'ny teknolojian'ny fotonika mikraoba, ny andiany LK-D-SS-12-T amin'ny tsipika fanemorana optika sy simulators optika dia manome fampisehoana tsara ary ampiasaina betsaka amin'ny fitiliana radar, fanodinana famantarana, antenna fandrafetana dingana, simulation antenna ary fitsapana tabataba. Ny fitaovana dia afaka miasa amin'ny fomba mahomby manerana ny tarika L / S / C / X manontolo miaraka amin'ny fahaverezan'ny fampidirana ambany, ny haavon'ny dinamika avo lenta, ny fitokanana elektromagnetika matanjaka, ary ny fahaizana mitantana famantarana fampitana triple tsy azo refesina. Ireo endri-javatra ireo dia mahatonga azy ho tonga lafatra amin'ny fanodinana famantarana optique sy microwave.

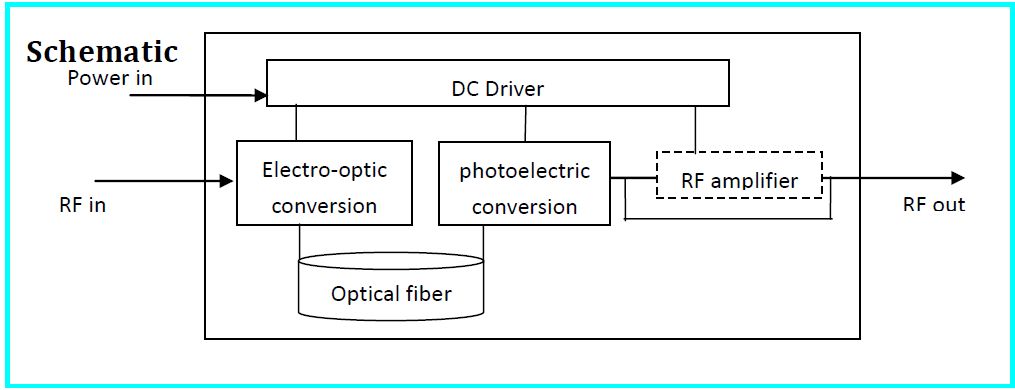

Technical Specifications
Toetra elektrônika / Optical
| fikirana | Sanda paramètre | Unit | fanamarihana | ||
| Min | mampiavaka | Max | |||
| Frequency Range | 1 | - | 12 | GHz | |
| Amplitude fisaka | - | ± 2 | ± 2.5 | dB | |
| Fahataperam-potoana | 0.01 | - | 150 | us | namboarina |
| Fahamarinana fahatarana | -5‰ | - | +5‰ | - | |
| fampidirana Loss | 0 | 20 | 30 | dB | namboarina |
| Ampidiro VSWR | - | 1.8 | 2 | - | |
| VSWR Output | - | 1.8 | 2 | - | |
| Impedance | - | 50 | - | Ω | |
| Ampidiro 1 dB Compression | - | 13 + | 17 + | dBm | |
| Ny tahan'ny fandavana famantarana hosoka | 60 | - | - | dBc | |
| Tarehimarika tabataba | - | 45 | 55 | dB | 5 sy, 25 ℃ |
| Miasa Temperature | -55 | - | 85 + | ℃ | Jereo ny fampahalalana momba ny baiko |
| Storage Temperature | -55 | - | 85 + | ℃ | |
| Fahataran'ny havany vs. maripana | - | - | 7 | ppm/℃ | |
| Fahaverezan'ny fampidirana vs. maripana | - | 2 | 4 | %/℃ | |
Famaritana ny mpampitohy & famatsiana herinaratra
| Pin | 1, 2 | 3, 4, 5 | 6, 7 | 8, 9 |
| Zintin'aratra | NC | GND | + 12V | NC |
| Rating amin'izao fotoana izao | - | - | 0.3 | - |
| Max Current | 1 |
Famaliana mahazatra (25 ℃)
Ny refy sy ny Pin (Unit: mm[inch])
RF connector: SMA-K (natokana)
DC connector: DE-9PS (natao)
| Product Type | LK-D-SS-12-TG | fanamarihana | |||||
| Fanemorana ny fotoana (isika) | 8 | 20 | 35 | 50 | 60 | 80 | Standard |
| X（mm） | 37 | 50 | 65 | 80 | 90 | 110 | |
| Product Type | LK-D-SS-12-TP | fanamarihana | |||||
| Fanemorana ny fotoana (isika) | 8 | 35 | 60 | 80 | 110 | 150 | Mitambatra |
| X（mm） | 20 | 45 | 55 | 65 | 78 | 95 | |
Ordering Information
| Product Type | Packages | Ambaratonga kalitao | Miasa Temperature | Storage Temperature |
| LK-D-SS-12-TGI | Standard | Kilasy indostrialy | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TGM | -kilasy antonony | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TGS | Kilasy manokana | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ | |
| LK-D-SS-12-TPI | Mitambatra | Kilasy indostrialy | -20 ℃ ~ 70 ℃ | -40 ℃ ~ 80 ℃ |
| LK-D-SS-12-TPM | -kilasy antonony | -40 ℃ ~ 70 ℃ | -50 ℃ ~ 80 ℃ | |
| LK-D-SS-12-TPS | Kilasy manokana | -55 ℃ ~ 85 ℃ | -55 ℃ ~ 85 ℃ |
fanamarihana：1. T dia tsipika fanemorana fara-tampony izay isa microsecond(us).
Applications
Fitsapana / calibration radar
Fanodinana signal
Ady elektronika
Antenna misesy
Antenna simulation
